Homeplug Wifi Powerline Kit-AV500/N300FI

7WHP530K Wifi Powerline Kit N300 Wallmount Type

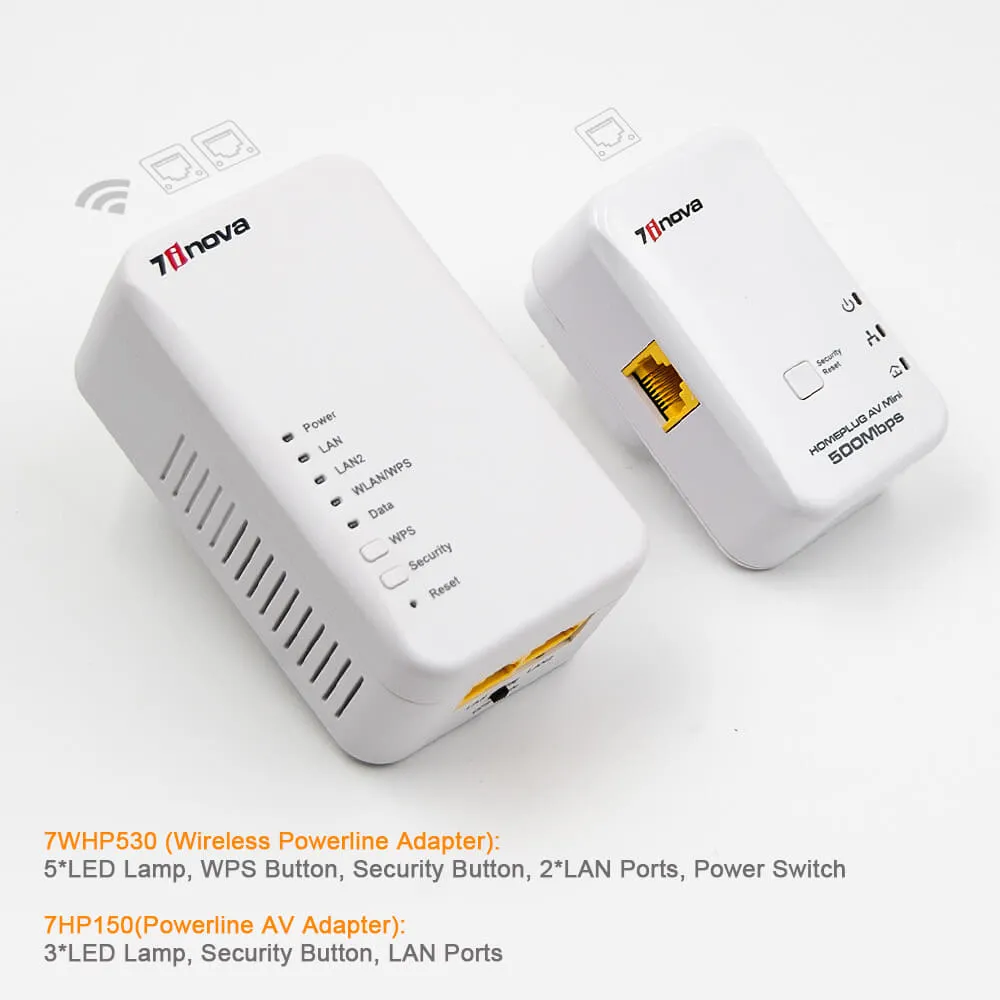

7WHP530 Wireless powerline adapter

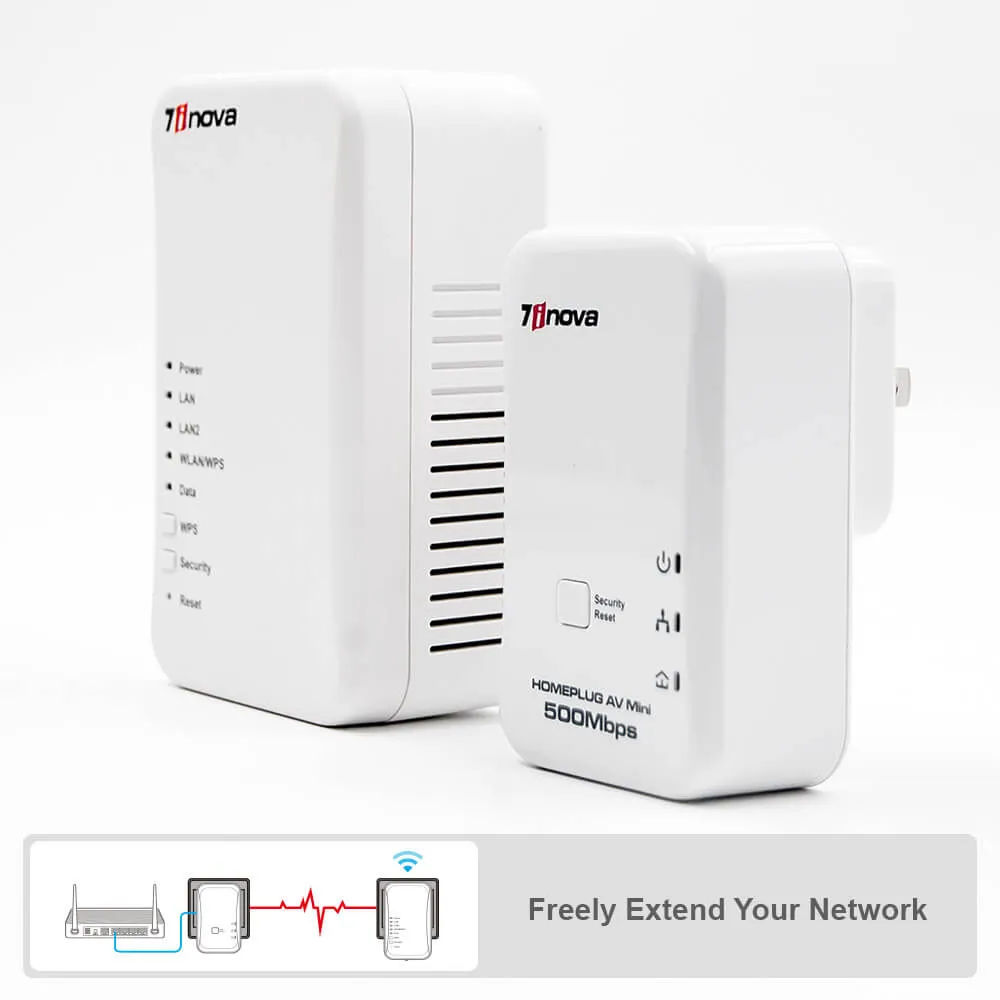

7WHP530 Wifi powerline adapter

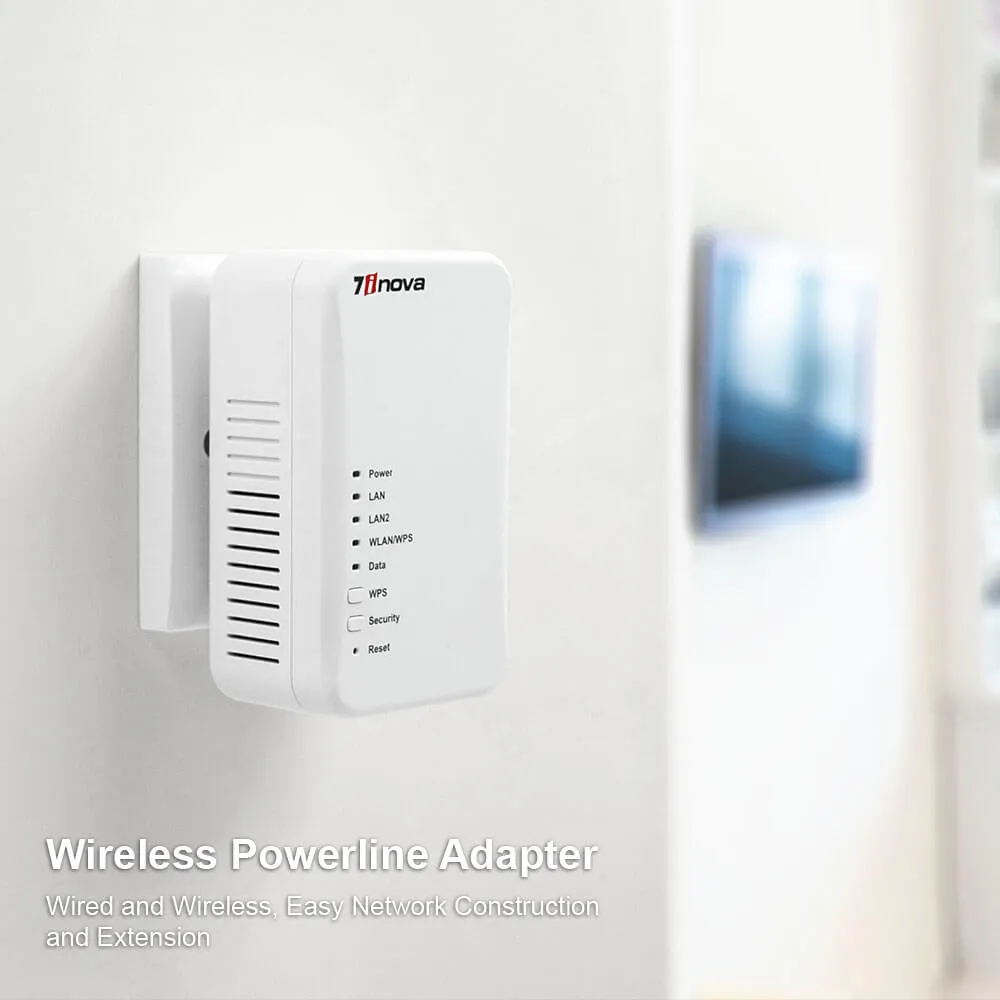

7WHP530 Wireless powerline adapter
7WHP530 Wireless powerline adapter

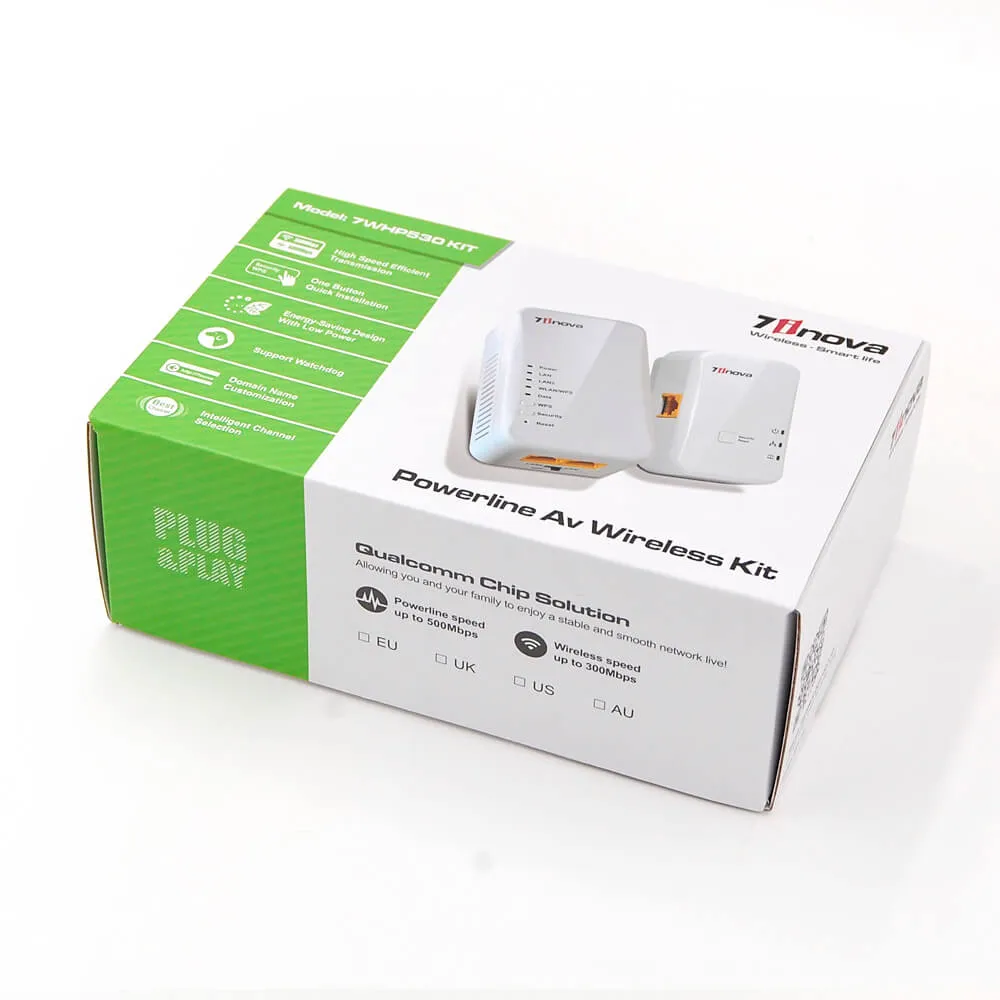

7WHP530 Wireless powerline adapter box
530 feature button
7WHP530KIT detail page

Wifi Powerline Kit Overview

This 7WHP530 wifi powerline kit units help you start a homeplug network and connect additional devices wirelessly to the internet. With this kit, you can add an extra wireless hotspot to any room in your house to connect extra devices wirelessly, ideal for areas with insufficient wireless coverage.

In addition, the two Fast Ethernet ports let you connect up to two devices per cable, ideal for devices that are not equipped for wireless Internet such as older generations of game consoles, Blu-ray players or desktop PCs.

7WHP530KIT wifi powerline kit is designed for PHY rate up to 500Mbps, and 300Mbps across wireless(802.11n). Both units are equipped with Atheros AR7420 chipset for powerline part, the wireless extender is up to 500 Mbps and Wireless N speeds up to 300 Mbps. This rapid transmission speed makes it ideal for bandwidth-intensive applications.

Features

Wifi Powerline Kit Feature

  • High Speed Efficient Transmission: Atheros chipset; 500Mbps Powerline; 300Mbps Wireless transmission.
  • Auto detect wireless signal around, avoid interference, select the best channel.
  • Support QAM 1024/256/64/16/8, QPSK, BPSK, and ROBO modulation schemes.
  • 128-bit AES Link Encryption with key management for secure power line communications.
  • Dynamic channel adaptation and channel estimation maximizes throughput in harsh channel conditions.
  • Energy-Saving Design With Low Power(1. Firmware Support sleep mode; 2. Support manual power off).
  • Limit The Number Of Users (Maximum 32 wireless users per device).
  • Support AP Isolation, Prevent the connected devices to access each other, guard each user’s data security.
  • Domain Name Customization, Static/Dynamic IP access DHCP for domain name visit, no need to enter IP address.
  • Support Watchdog, MAC Address Filtering, Graphics Verification.

Specification

Wifi Powerline Kit Specification

HomePlug :

Standard: HomePlug AV

Transmission Speed: 500Mbps

Peak Throughput: 95Mbps UDP, 95Mbps TCP

Range: 300m

Modulation Scheme:  4096/1024/256/64/16/8-QAM,QPSK,BPSK and ROBO

Frequency: 2MHz~68MHz

Wireless Receiving Sensitity: N/A

Wireless Output Power: N/A

Media Access: priority based CSMA/CA

Wireless :

Standard: IEEE 802.11b/g/n

Transmission Speed: 300Mbps

Range: 300m

Modulation Scheme:

11b: CCK, DQPSK, DBPSK

11g: 64 QAM, 16 QAM, QPSK, BPSK

11n: 64 QAM, 16 QAM, QPSK, BPSK

Frequency: 2.4GHz~2.484GHz

Wireless Receiving Sensitity: 802.11n: -71dBm

Wireless Output Power: 17dBm

Media Access: CSMA/CA

Port/LED/Button :

WAN Port:

One RJ45 (IEEE 802.3 10/100Mbps), could be configured to LAN Port

LAN Port: One RJ45 (IEEE 802.3 10/100Mbps)

LED: Power, LAN1,LAN2, Data, WLAN

Button: Security, WPS, Reset, Power Switch(Optional)

Power Supply :

100~240 VAC, 50/60Hz

Power Socket :

EU, UK, US, CN, AUS

Power Consumption :

6.5W Operation

Environment Requirement :

Operating Temperature: 0º to 45º C

Storage Temperature: -40 º to 70 º C

Operating Humidity: 10% to 90% Non-condensing

Storage Humidity: 5% to 90% Non-Condensing
