AV600 Homeplug Power Line Module Ready-To-Use For Robot

Model: 7ZP250 AV600 Homeplug Powerline Work Power: DC5-24V

Share:

AV600 Power Line Module Overview

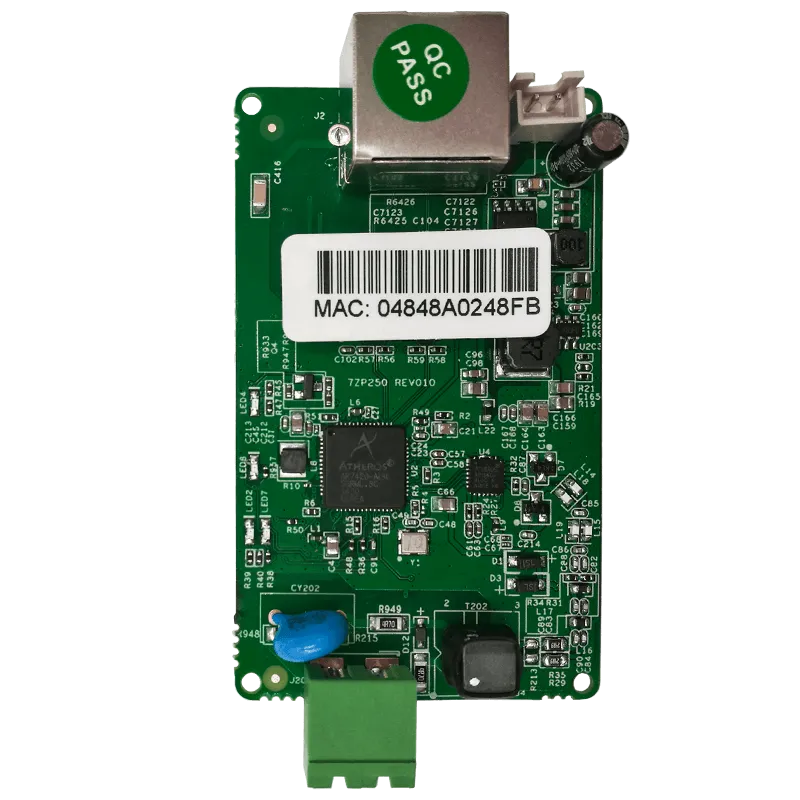

7ZP250 is a high speed and stable power line module. It supports both IEEE1901 and Homeplug AV standards, provides standard Ethernet front-end ports and also supports a twisted pair interface for faster time-to-market and flexibility of product features, very ideal for a number of scenarios, can be integrated in IoT nodes, CCTV cameras, Smart Metering Systems, Energy Managements systems, etc.

7ZP250 AV600 powerline communication module adopts Qualcomm Atheros7420 chip solution, based on OFDM modulation technology of data transmission products, this homeplug module is powered by DC5-24V, and carries signal data over AC/DC and any two wires, Max Range:

    • 300m Power Lines
    • 600m Telephone Lines
    • 2000m Coaxial Cable

It provides up to 600Mbps (physical layer updated from AV500 to AV600) powerline transmission rate, has very stable and reliable performance.

Support 128-bit AES encryption, takes up 2-68MHZ band communication, the existing CATV cable radio signal or no effect, without user configuration, wiring after the completion of the work.

AV600 Power Line Module Application:

  • Smart Elevator
  • Security Monitoring
  • Access Controller
  • Underwater Robot…
  • Smart Meters
  • Energy Management System
  • Programmable Controlled Thermostates
  • Remote Meters Devices
  • Surveillance
  • Industry
  • Solar Panel

7ZP250 dc powerline module topology



Features

  • Compliant with homeplug AV and IEEE1901 standard. The Maximum data rate is 600Mbps.
  • Data transmission via two wired line, telephone line and power line.
  • It supports TCP/IP protocole, can be used to communicate to any Ethernet based devices like PC,IP camera,IP phones.
  • No need for configuration by end users, it can work when you plug into the lines.
  • Support DC12V-24V Broad work power voltage.
  • The working frequency ranged from 2-68MHz. No influence on current CATV signals at home.
  • Ready to Use with available standard ethernet port and twisted-pair connectors.

Specification

Hardware parameters
Model7ZP250
Agreement/standardHomePlug AV,IEEE 802.3,IEEE 802.3u
Letter of agreementTCP/IP,IGMP,CSMA/CA,QoS
Modulation ruleOFDM (1024/256/64/16-QAM,QPSK,BPSK and ROBO Modulation rule )
Transmission frequency band2-68MHz
Transmission rate(PHY)600Mbps
PortAC interface, Ethernet interface, PLC interface
LED InstructionsPower indicator, power line data transmission indicator, Ethernet

interface indicator

Operating systemWindows 98SE/ME/2000/2003/XP/Vista,Windows7/10,Linux,Mac OS
Transmission distance300m(Within the same meter)
Coverage5000 Square feet
Data Security128-bit AES Encryption
Operating VoltageDC-5V-24V-0.2A
Power consumptionConventional≤4.8W
Size72×43.5x15mm(LxWxH)
Weight30g
Use environment
Operating temperature0℃~70℃
Storage temperature-20℃~70℃
Working humidity10%~90%RH No condensation
Storage humidity5%~90%RH No condensation
