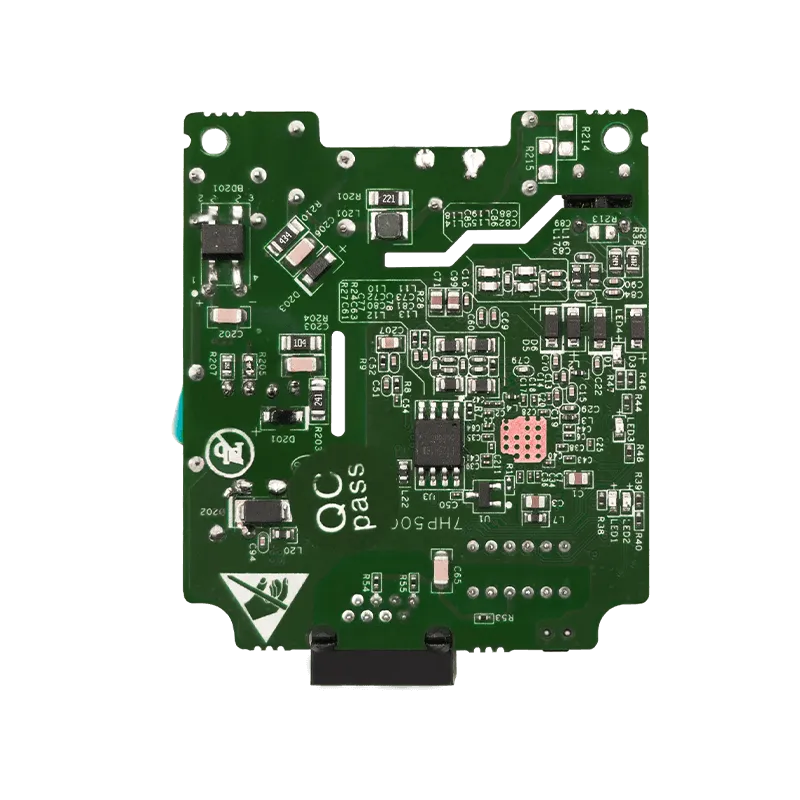

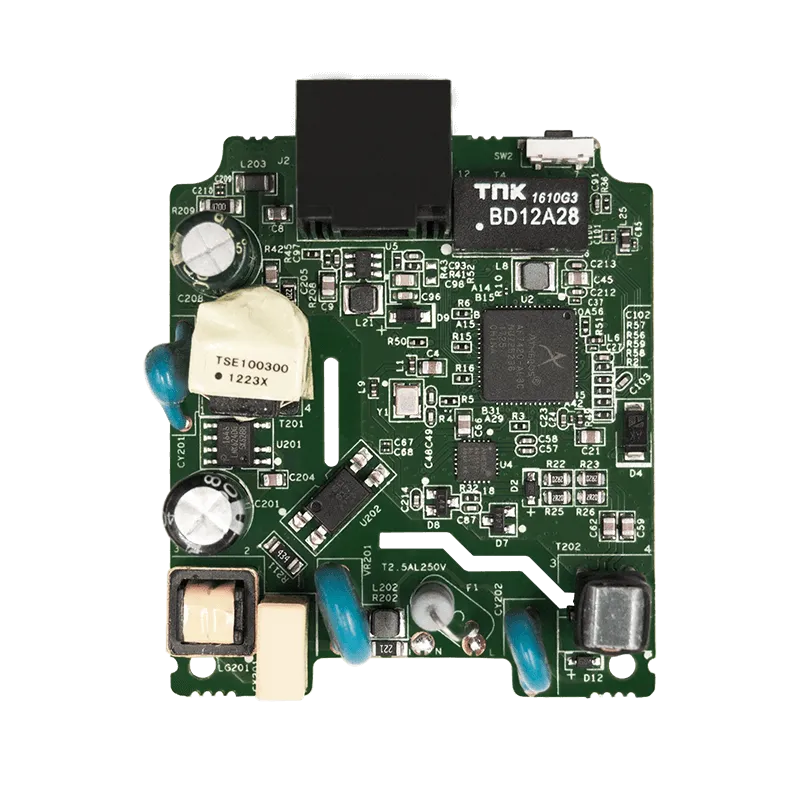

AV600 PLC Module Ready-To-Use (AC Powered) For Emergency Communication

Model: 7HP50 AV600 Homeplug Powerline Module Work Power: AC110-220V

Share:

AV600 PLC Module Overview

7HP50 is a high speed and stable AV600 PLC module powered by AC power. It supports both IEEE1901 and Homeplug AV standards, provides standard Ethernet front-end ports and for faster time-to-market and flexibility of product features, very ideal for a number of scenarios, can be integrated in IoT nodes, CCTV cameras, Smart Metering Systems, Energy Managements systems, etc.

7HP50 AV600 PLC module adopts Qualcomm Atheros 7420 chip solution, based on OFDM modulation technology of data transmission products, and carries data over AC Lines with max 300meters range.

It provides up to 600Mbps (physical layer updated from AV500 to AV600) powerline transmission rate, has very stable and reliable performance.

Support 128-bit AES encryption, takes up 2-68MHZ band communication, the existing CATV cable radio signal or no effect, without user configuration, wiring after the completion of the work.

AV600 PLC Module Application:

  • Smart Elevator
  • Security Monitoring
  • Access Controller
  • Underwater Robot…
  • Smart Meters
  • Energy Management System
  • Programmable Controlled Thermostates
  • Remote Meters Devices
  • Surveillance
  • Industry
  • Solar Panel

Features

  • Compliant with homeplug AV and IEEE1901 standard. The Maximum data rate is 600Mbps.
  • Data transmission via two wired line, telephone line and power line.
  • It supports TCP/IP protocole, can be used to communicate to any Ethernet based devices like PC,IP camera,IP phones.
  • No need for configuration by end users, it can work when you plug into the lines.
  • The working frequency ranged from 2-68MHz. No influence on current CATV signals at home.
  • Ready to Use with available standard ethernet port, plug on and works.

Specification

Interface1×10/100mbps Ethernet
1xPower outlet integrated
IndicatorPower, Ethernet, Data
Powerline IEEE1901 Backward Compatible with Homeplug AV
EthernetIEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet,
Protocol SupportTCP/IP, IGMP, CSMA/CA, QOS
EncryptionAES 128-bit
Power Supply Unit100v-240v AC
Power consumption<3Watt(Normal) ;  <1 Watt(Power Save Mode)
Power SaveCompliance with EuP
Frequency2-68MHz
ModulationOFDM (1024/256/64/16-QAM,QPSK,BPSK and ROBO) Modulation Technology)
PHY Speed600 Mbps
Distance300Meters
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC OS,  or Linux
EnvironmentOperating Temperature: 0~40 ℃(32 ℉~104℉)Storage Temperature:   -20~70 ℃ (-4 ℉~158℉)

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing
