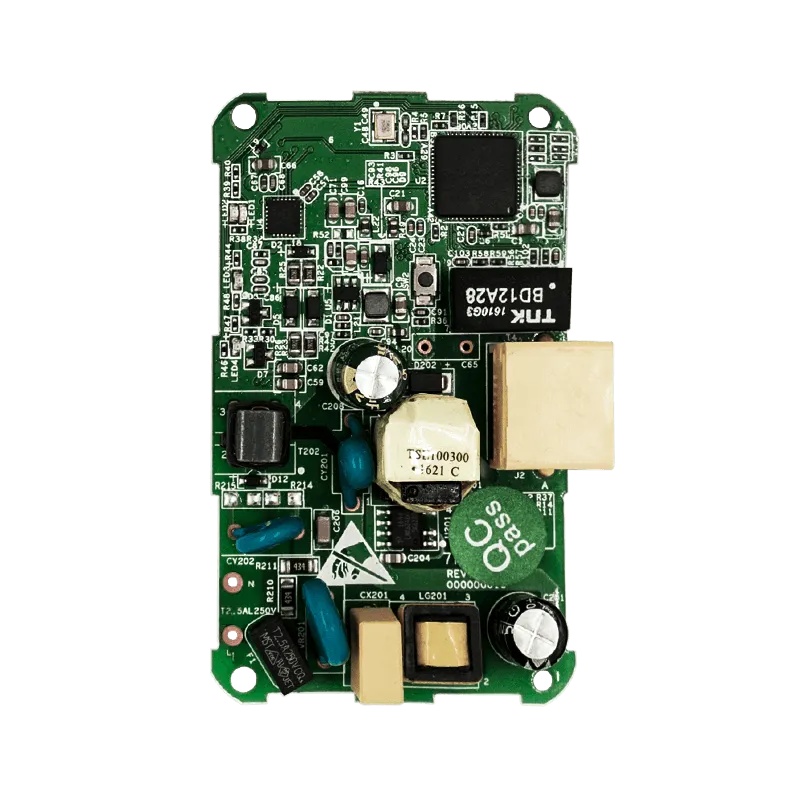

7HP15 av600 power line module with ethernet port

AV600 Power Line Module Ready-To-Use (AC Powered)

Model: 7HP15 be powered by AC110-220V

Share:
Facebook Twitter Pinterest Linkedin

AV600 Power Line Module Overview

7HP15 is a high speed and stable powav600 power line module. It supports both IEEE1901 and Homeplug AV standards, provides standard Ethernet front-end ports for faster time-to-market and flexibility of product features, very ideal for a number of scenarios, can be integrated in IoT nodes, CCTV cameras, Smart Metering Systems, Energy Managements systems, etc.

7HP15 AV600 power line module adopts Qualcomm Atheros7420 chip solution, based on OFDM modulation technology of data transmission products, and carries data over AC Lines with max 300meters range.

It provides up to 600Mbps (physical layer updated from AV500 to AV600) powerline transmission rate, has very stable and reliable performance.

Support 128-bit AES encryption, takes up 2-68MHZ band communication, the existing CATV cable radio signal or no effect, without user configuration, wiring after the completion of the work.

AV600 Power Line Module Application:

  • Smart Elevator
  • Security Monitoring
  • Access Controller
  • Underwater Robot…
  • Smart Meters
  • Energy Management System
  • Programmable Controlled Thermostates
  • Remote Meters Devices
  • Surveillance
  • Industry
  • Solar Panel

Features

  • Compliant with homeplug AV and IEEE1901 standard. The Maximum data rate is 600Mbps.
  • Data transmission via two wired line, telephone line and power line.
  • It supports TCP/IP protocole, can be used to communicate to any Ethernet based devices like PC,IP camera,IP phones.
  • No need for configuration by end users, it can work when you plug into the lines.
  • The working frequency ranged from 2-68MHz. No influence on current CATV signals at home.
  • Ready to Use with available standard ethernet port, plug on and works.

Specification

Standards:  Powerline : HomePlug AV

Ethernet : IEEE 802.3 10/100 Auto MDI/MDIX

Energy Saving: EuP Compliance

Protocol:   TCP/IP, IGMP, QoS CSMA/CA

Modulation Technology: OFDM 1024/256/64/16/8 QAM, QPSK, BPSK and ROBO Modulation Scheme

Data Transfer rate: Up to 600Mbps over powerline

Transmission Range:Up to 300m over powerline

Frequency band: 2Mhz to 68Mhz

Security & Protection: 128-bit AES encryption (enabled with Simple Connect button)

Power Requirement:    AC 100 ~240V, 50~60Hz

Power Consumption: Normal: less than3 Watt

Power save: less than 1 Watt  Average

Operating System: Windows 98SE/ME/2000/2003/XP/Vista, Windows7, Linux, Mac OS

Temperature:   Operating : 0° to 40° C

Non-Operating : -25° to 70° C

Humidity:         Operating:10%~90%, Non-condensing

Non-Operating : 5%~90%, Non condensing

Physical Interface:

LED Indicators:

1 x Power : Green

1 x Ethernet : Green

1 x Data : Green

pdf

Download Datasheet Here
