AV600 Embedded Powerline Module For Video Surveillance

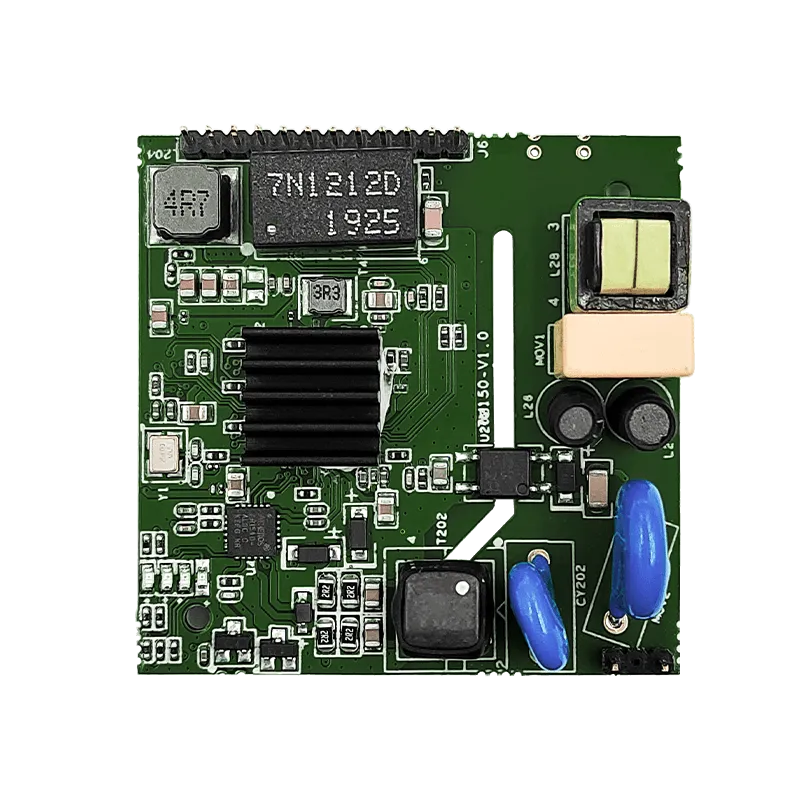

Model: 7M150 Embedded size:45*45mm

Share:

AV600 Embedded Powerline Module Overview

7M150 is a AV600 embedded powerline Module, designed for high speed transmission application scenarios, can be integrated in IoT nodes, CCTV cameras, Smart Metering Systems, Energy Managements systems, etc.

7M150 DC powered AV600 powerline module adopts Qualcomm Atheros7420 chip solution, carries data over AC/DC Lines, Max Range:

    • 300m Power Lines
    • 600m Telephone Lines
    • 2000m Coaxial Cable

It has the characteristics of high integration and small size. It provides up to 600Mbps (physical layer updated from AV500 to AV600) powerline transmission rate, has very stable and reliable performance.

The 7M150 powerline carrier module supports 128-bit AES encryption, takes up 2-68MHZ band communication, the existing CATV cable radio signal or no effect, without user configuration, wiring after the completion of the work.

AV600 Embedded Powerline Module Application:

  • Smart Elevator
  • Security Monitoring
  • Access Controller
  • Underwater Robot…
  • Smart Meters
  • Energy Management System
  • Programmable Controlled Thermostates
  • Remote Meters Devices
  • Surveillance
  • Industry
  • Solar Panel
7M150 Topology diagram
7M150 Topology diagram

Features

  • Compliant with homeplug AV and IEEE1901 standard. The Maximum data rate is 600Mbps.
  • Data transmission via two wired line, telephone line and power line.
  • It supports TCP/IP protocole, can be used to communicate to any Ethernet based devices like PC,IP camera,IP phones.
  • No need for configuration by end users, it can work when you plug into the lines.
  • Ideal modules for small-footprint embedded devices.
  • The working frequency ranged from 2-68MHz. No influence on current CATV signals at home.

Specification

Hardware Specification
Model Number7M150
StandardHomePlug AV,IEEE 802.3,IEEE 802.3u
ProtocolTCP/IP,IGMP,CSMA/CA,QoS
ModulationOFDM (1024/256/64/16 QAM,QPSK,BPSK和ROBO Modulation)
Frequency Band2-68MHz
Speed(PHY)600Mbps
InterfaceAC Interface, Ethernet Interface, GPIO Interface, PLC filter Interface
LED IndicatorPower,Data,LAN
OSWindows 98SE/ME/2000/2003/XP/Vista,Windows7,Linux,Mac OS
Transmission Distance300meters(The same Power Meter)
Coverage5000 Square Inches
Security128-bit AES Encryption
Working VoltageDC-12V-0.8A
ConsumptionNormal≤1.5W
Size45x45x20mm(LxWxH)
Weight25g
Environment
Working Temperature0℃~70℃
Storage Temperature-20℃~70℃
Working Humidity10%~90%RH Non-Condensing
Storage Humidity5%~90%RH Non-Condensing
