av200 powerline module

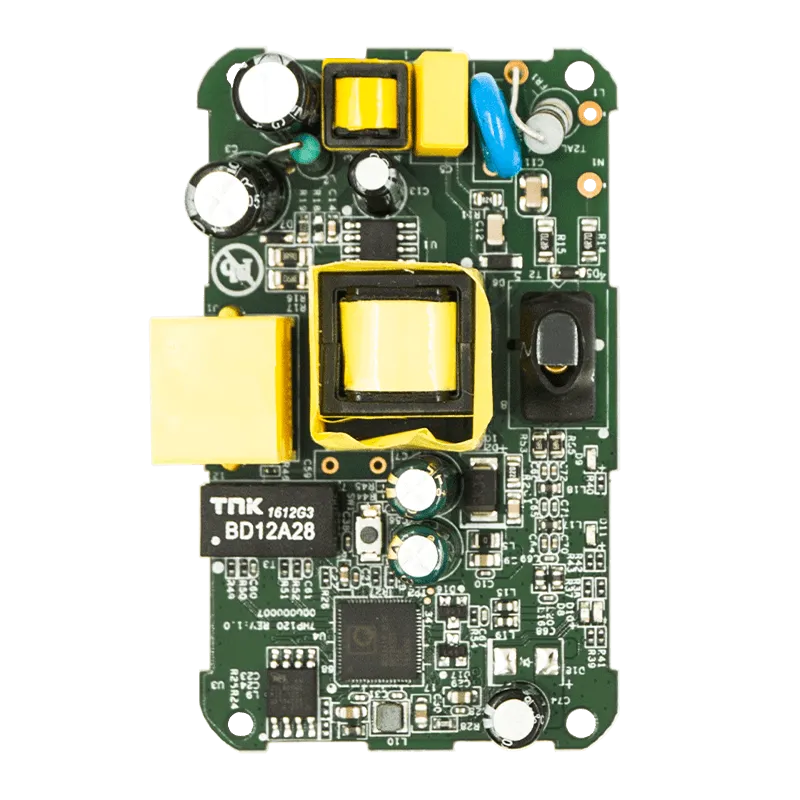

AV200 Powerline Communication Module Ready-To-Use With Ethernet Port

Model: 7HP12 AV200 Powerline Module Powered by AC 110-220V



Share:
Facebook Twitter Pinterest Linkedin

AV200 Powerline Module Overview

7HP12 is a AC110-220V powered av200 powerline module, it carries signal also over AC wires. It supports both IEEE1901 and Homeplug AV, suitable for Access Control, IoT nodes, CCTV cameras, Smart Metering Systems, Energy Managements systems, etc.

7HP12 AV200 powerline communication module adopts Qualcomm QCA6410 chip as the module’s chipset, which is the powerline chipset leader. It provides up to 200Mbps powerline transmission rate, stable operation and reliable performance.

7HP12 2-wires plc module provides standard Ethernet front-end ports for users to plug wire directly to use. Faster time-to-market and flexibility of product features.

AV200 Powerline Module Application

  • Smart Home
  • Smart Elevator
  • Security Monitoring
  • Access Controller
  • Underwater Robot…
  • Smart Meters
  • Energy Management System
  • Programmable Controlled Thermostats
  • Remote Meters Devices
  • Surveillance
  • Industry
  • Solar Panel

Features

  • Compliant with homeplug AV and IEEE1901 standard. The Maximum data rate is 200Mbps.
  • Data transmission via two wired AC power line.
  • It supports TCP/IP protocole, can be used to communicate to any Ethernet based devices like PC,IP camera,IP phones.
  • No need for configuration by end users, it can work when you plug into the lines.
  • Provides standard ethernet front-end port for fast use.
  • The working frequency ranged from 2-30MHz.
  • No influence on current CATV signals at home.
  • It supports 128-bit encryption AES.

Specification

Standards:          Powerline : HomePlug AV

Ethernet :            IEEE1901, 802.3 10/100 Auto MDI/MDIX

Energy Saving:   EuP Compliance

Protocol:              TCP/IP, IGMP, QoS CSMA/CA

Modulation Technology: OFDM 1024/256/64/16/8 QAM, QPSK, BPSK and ROBO Modulation Scheme

Data Transfer rate:  Up to 200Mbps over powerline

Transmission Range: Up to 300meters over power line

Frequency band:         2Mhz to 30Mhz

Security & Protection: 128-bit AES encryption

Power Requirement:    AC 110 ~220V, 50~60Hz

Power Consumption:    Normal: less than3 Watt

Power save:                     Less than 1 Watt  Average

Operating System:         Windows 98SE/ME/2000/2003/XP/Vista, Windows7, Linux, Mac OS

Temperature:

Operating : 0° to 40° C

Non-Operating : -25° to 70° C

Humidity:

Operating:10%~90%, Non-condensing

Non-Operating : 5%~90%, Non-condensing

Physical Interface:

LED Indicators:

1 x Power : Green

1 x Ethernet : Green

1 x Data : Green
