AV200 Embedded HomePlug PLC Module (Power-Line Communication) For RoV

Model: 7TM120 Embedded Design  Size: 38*36mm Work Power: DC12V



Share:

AV200 Embedded PLC Module Overview

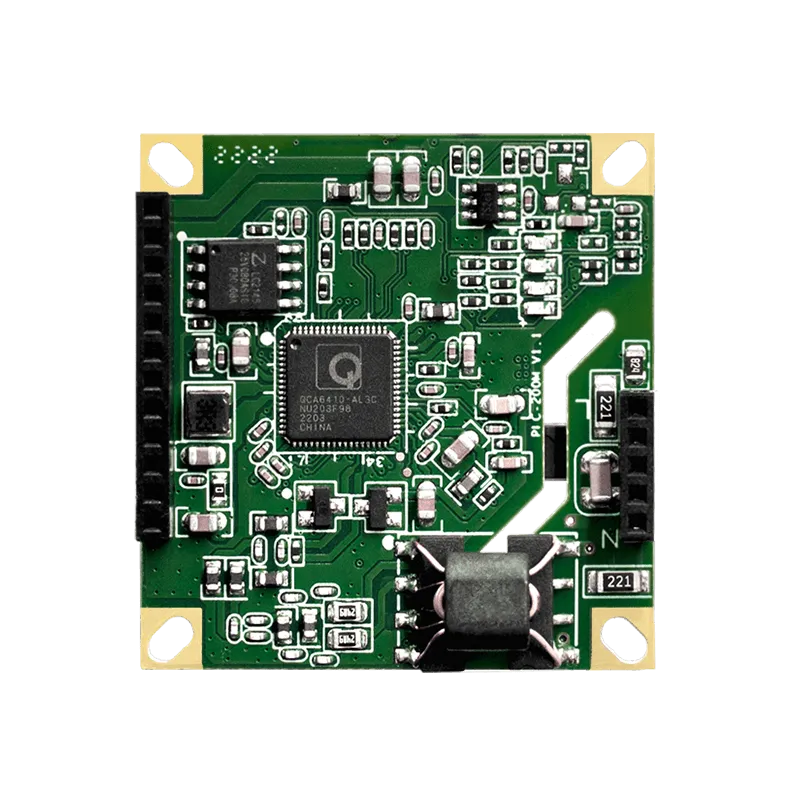

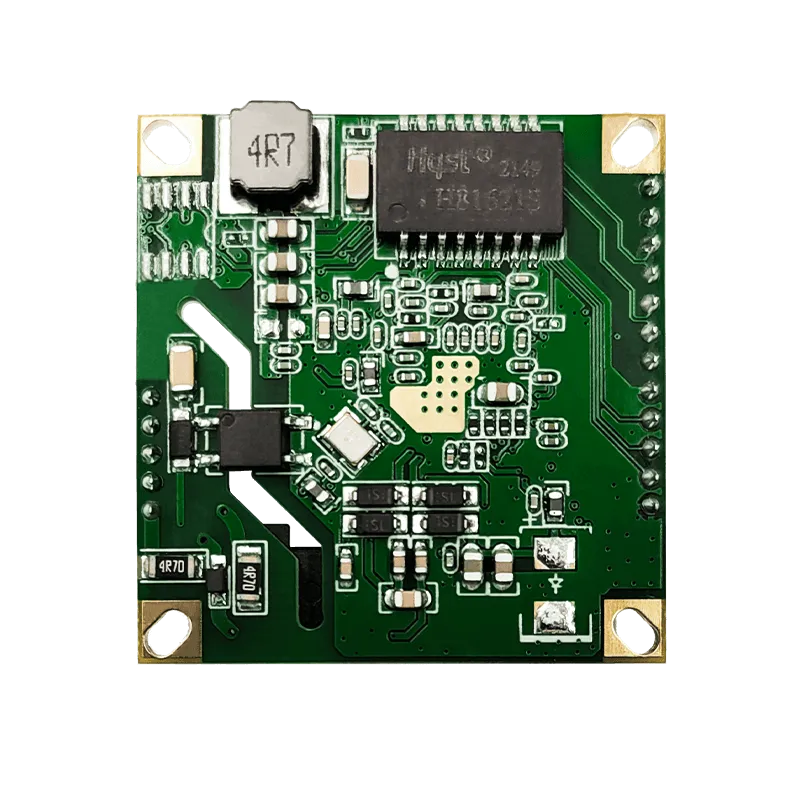

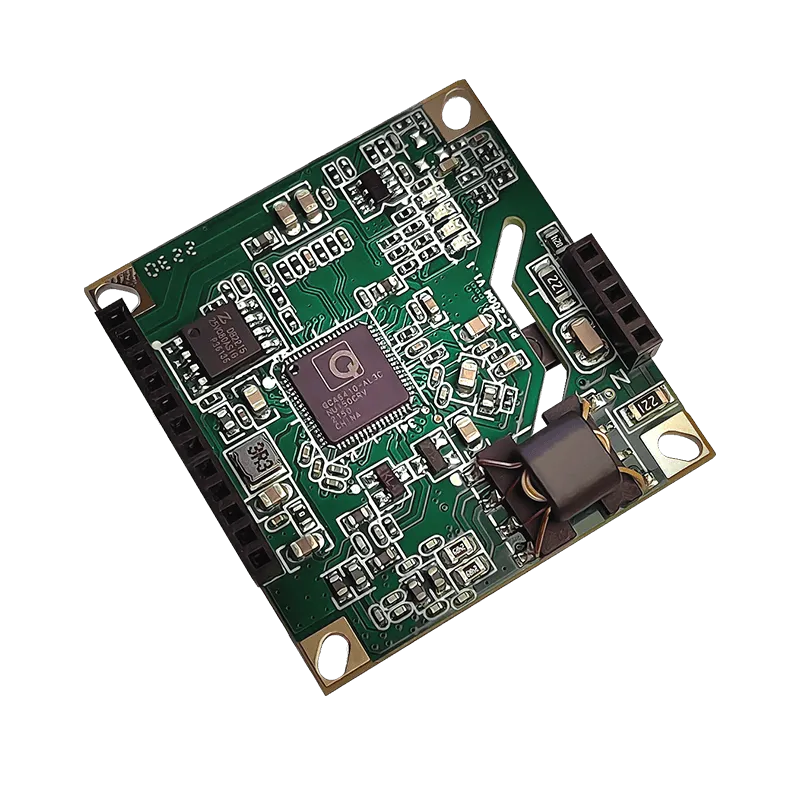

7TM120 is a av200 embedded plc module (power line communication). It is compact, supports both IEEE1901 and Homeplug AV standards, and is ideal for a number of scenarios, can be integrated in IoT nodes, CCTV cameras, Smart Metering Systems, Energy Managements systems, etc.

7TM120 AV200 embedded plc module adopts Qualcomm QCA6410 chip solution, carries data over AC/DC Lines. it has the characteristics of high integration and small size. It provides up to 200Mbps (physical layer) powerline transmission rate, has very stable and reliable performance.

AV200 Embedded PLC Module Application:

  • Smart Elevator
  • Security Monitoring
  • Access Controller
  • Underwater Robot…
  • Smart Meters
  • Energy Management System
  • Programmable Controlled Thermostates
  • Remote Meters Devices
  • Surveillance
  • Industry
  • Solar Panel

Topology Diagram:

7TM120 Powerline module TOPOLOGY
7TM120 Powerline module TOPOLOGY



Features

  • Compliant with homeplug AV and IEEE1901 standard. The Maximum data rate is 200Mbps.
  • Data transmission via two wired line, telephone line and power line.
  • It supports TCP/IP protocole, can be used to communicate to any Ethernet based devices like PC,IP camera,IP phones.
  • No need for configuration by end users, it can work when you plug into the lines.
  • Ideal modules for small-footprint embedded devices.
  • The working frequency ranged from 2-28MHz. No influence on current CATV signals at home.

Specification

Hardware Specification
Model Number7TM120
StandardHomePlug AV,IEEE 802.3,IEEE 802.3u
ProtocolTCP/IP,IGMP,CSMA/CA,QoS
ModulationOFDM (1024/256/64/16-QAM,QPSK,BPSK和ROBO Modulation)
Frequency Band2-28MHz
Speed(PHY)200Mbps
InterfaceAC Interface, Ethernet Interface, GPIO Interface
LED IndicatorPower,Ethernet, PLC
OSWindows 98SE/ME/2000/2003/XP/Vista,Windows7,Linux,Mac OS
Transmission Distance300m(The same Power Meter)
Coverage5000 Square Inches
Security128-bit AES Encryption
Working VoltageDC-12V-1A
ConsumptionNormal≤1.5W
Size38×36.4x15mm(LxWxH)
Weight20g
Environment
Working Temperature0℃~70℃
Storage Temperature-20℃~70℃
Working Humidity10%~90%RH  Non-Condensing
Storage Humidity5%~90%RH  Non-Condensing
