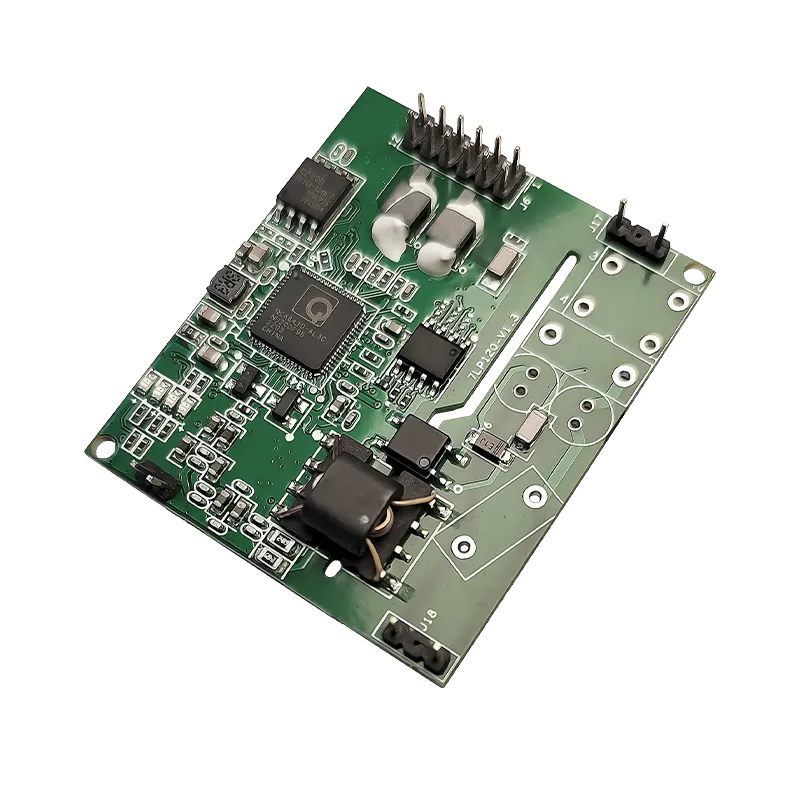

7LP120 AV200 Embedded PLC Module For Intercom

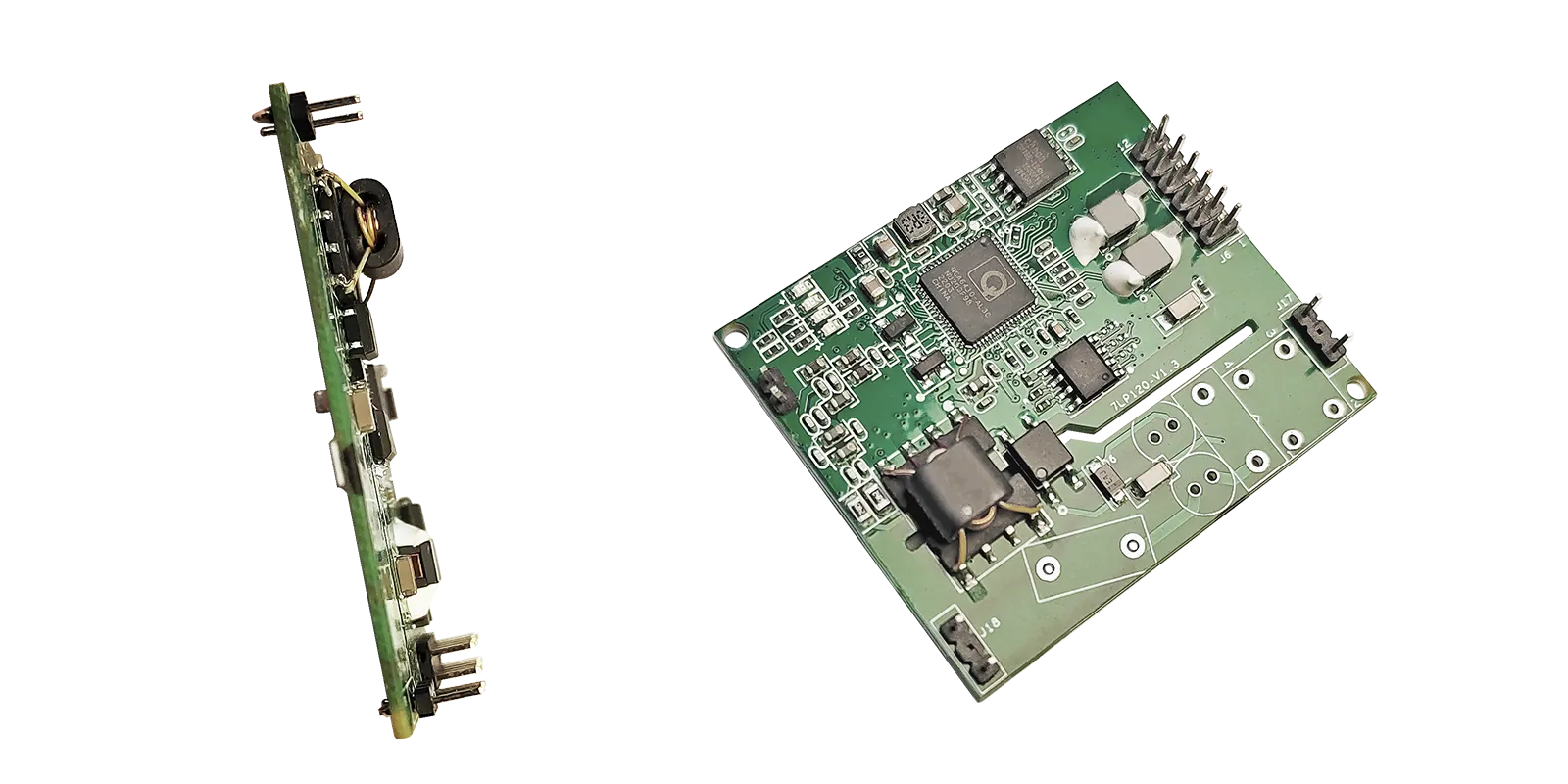

7LP120 ultra thin homeplug module

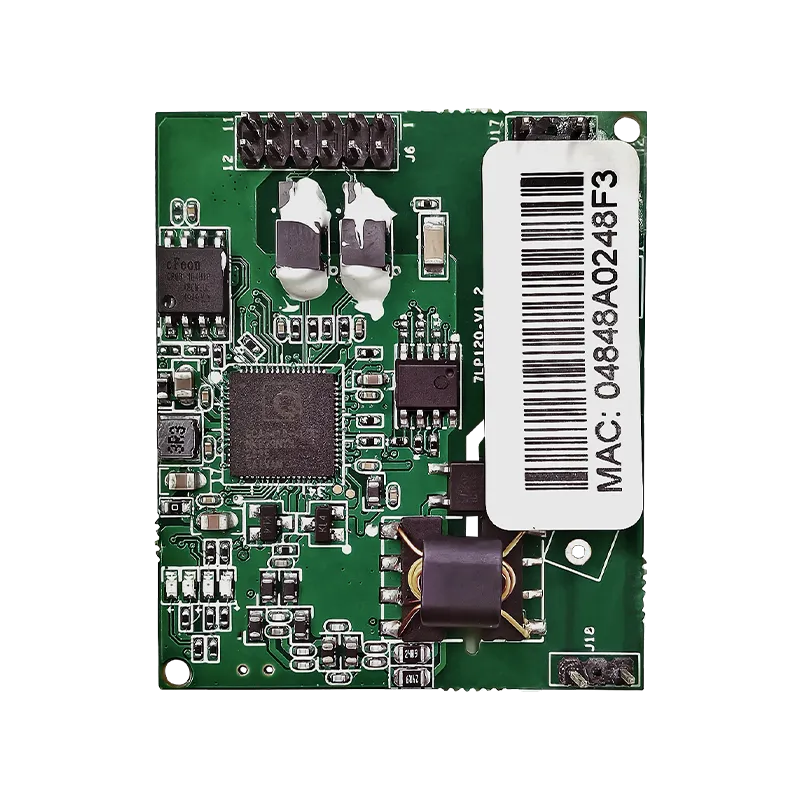

7LP120 embedded intercom network transmission powerline module

AV200 Embedded PLC Module For Powerline Intercom System

Model: 7LP120 Embedded Design  Size: 45*38*8mm



Share:
Facebook Twitter Pinterest Linkedin

PLC Module For Intercom Overview

7LP120 is AV200 embedded PLC module, designed for image and video transmission, especially used to embed in the powerline intercom system. It is compact, supports both IEEE1901 and Homeplug AV, and is ideal for a number of scenarios, can be integrated in Access Control, IoT nodes, CCTV cameras, Smart Metering Systems, Energy Managements systems, etc.

7LP120  adopts Qualcomm QCA6410 chip as the main chipset. It has the characteristics of high integration and small size. It can provide up to 200Mbps powerline transmission rate, stable operation and reliable performance.

7LP120 AV200 embedded plc module is ultra-thin with pin design, the board’s thickness is up to 8mm, suitable for small space PCB motherboard embedding.

PLC Module For Intercom Application

  • Smart Elevator
  • Security Monitoring
  • Access Controller
  • Underwater Robot…
  • Smart Meters
  • Energy Management System
  • Programmable Controlled Thermostates
  • Remote Meters Devices
  • Surveillance
  • Industry
  • Solar Panel

Topology Diagram:

7LP120 topology diagram
7LP120 av200 embedded plc module topology diagram





Features

  • Compliant with homeplug AV and IEEE1901 standard. The Maximum data rate is 200Mbps.
  • Data transmission via two wired line, telephone line and power line.
  • It supports TCP/IP protocole, can be used to communicate to any Ethernet based devices like PC,IP camera,IP phones.
  • No need for configuration by end users, it can work when you plug into the lines.
  • Ideal modules for small-footprint embedded devices.
  • The working frequency ranged from 2-28MHz. No influence on current CATV signals at home.
  • Support PLC filtering and lightning protection.

Specification

Model Number:                7LP120

Standard:                           HomePlug AV，IEEE 802.3, IEEE 802.3u

Protocol:                             TCP/IP，IGMP，CSMA/CA, QoS

Modulation:                        OFDM (1024/256/64/16         QAM,QPSK,BPSK and ROBO Modulation)

Frequency Band                  2-28MHz

Speed（PHY)                       200Mbps

Interface                                AC Interface, Ethernet Interface, GPIO interface, PLC filter Interface

LED Indicator                       Power，Data，LAN

OS                                            Window 98SE/ME/2000/2003/XP/Vista/Windows7/Linux/MacOS

Transmission Distance        300m（The same Power Meter）

Coverage                                5000 Square Inches

Security                                  128-bit AES Encryption

Working Voltage                   DC-3.3V-1A

Consumption                         Normal≤1.5W

Size                                           45x38x8mm（LxWxH）

Weight                                     20g

Environment

Working Temperature             0℃~70℃

Storage Temperature               -20℃~70℃

Working Humidity                    10%~90%RH Non-Condensing

Storage Humidity                       5%~90%RH Non-Condensing
