AV2 1300 Powerline Module Gigabit (PLC) with Ethernet Port (AC Powered)

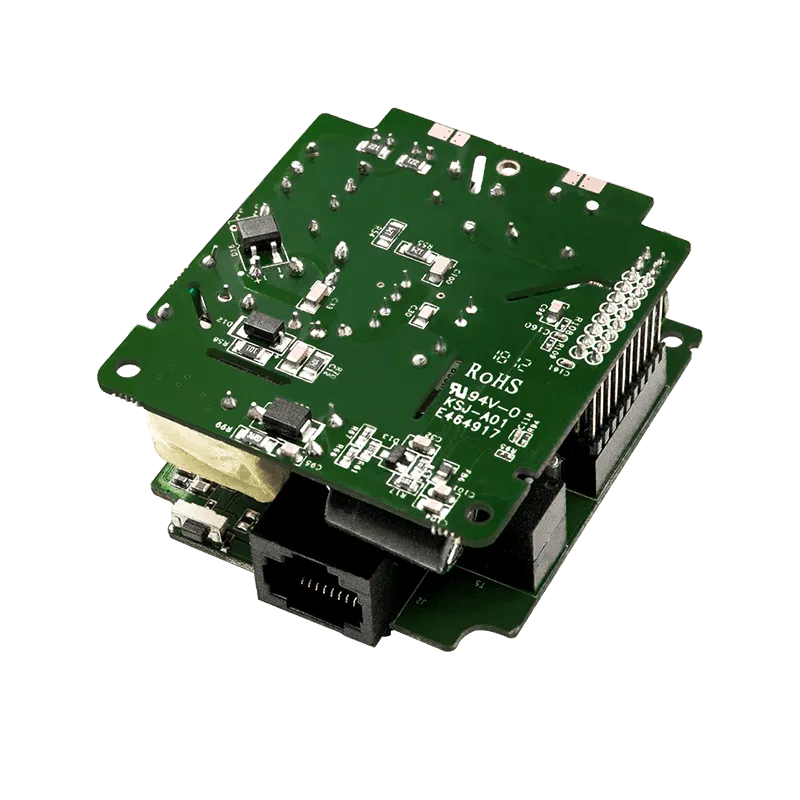

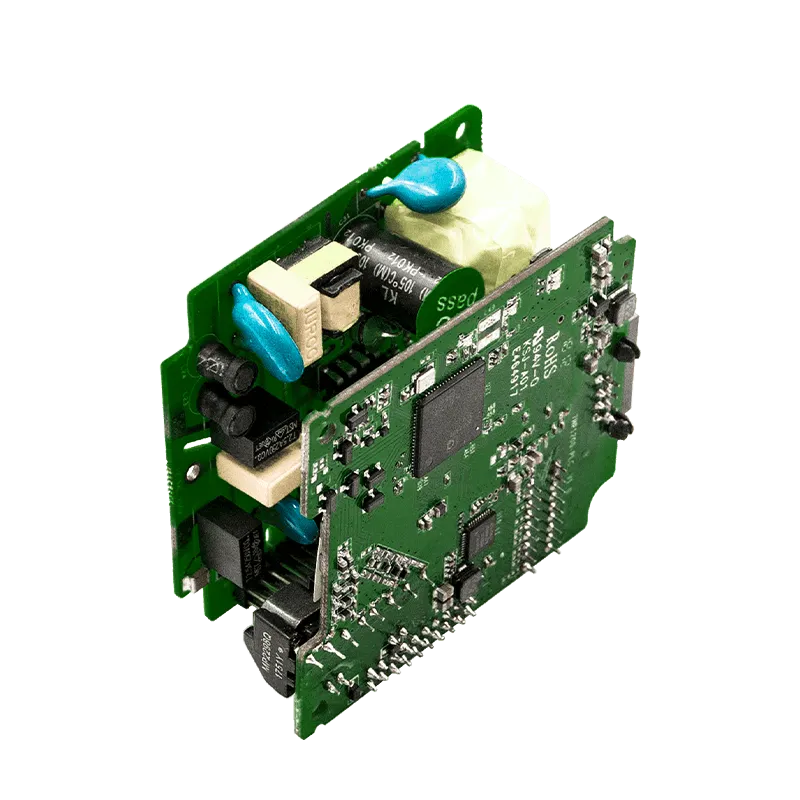

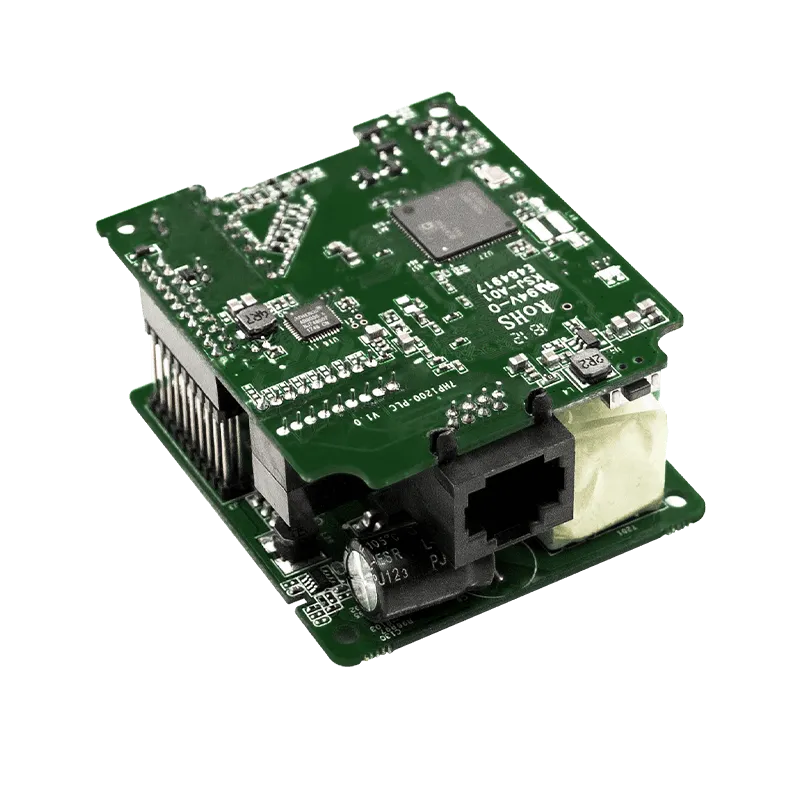

7HP20 Gigabit Powerline Communication(Homeplug AV2 1300 MIMO PLC) Module AC100-220V Input

Share:

AV2 1300 Powerline Module Overview

The 7HP20 gigabit powerline communication plc module PCBA connects your network-compatible devices at speeds up to av2 1,300Mbps with Qualcomm QCA7550 chipset for advanced data transmission and lightning-fast internet access.

 This gigabit powerline communication module supports both IEEE1901 and Homeplug AV2 standards, provides standard Ethernet front-end ports and for faster time-to-market and flexibility of product features, very ideal for a number of scenarios, can be integrated in HD,SD Video, IPTV, VOIP,  CCTV cameras, Printer, Gaming , Network sharing and managements systems, etc.

Its Ready- To-Use Gigabit LAN port ensures a stable connection with significantly longer range than before.

AV2 1300 Powerline Module Applications

  • High Definition (HD) and Standard Definition (SD) video distribution
  • Internet Protocol Television (IPTV) distribution
  • Home networking backbone for Hy-Fi, Wi-Fi, and wireless USB
  • High-speed broadband sharing
  • Audio and video streaming and internet downloading
  • Voice over Internet Protocol (VoIP)
  • PC files and applications sharing
  • Printer and peripheral sharing
  • Network and interactive online gaming
  • Security Hy-Fi cameras

Features

1. HomePlug AV2, IEEE 1901, IEEE 1905.1 compliant. High-speed data transfer rates of up to 1300Mbps, supports all your online needs.

2. Easy Plug and Play operation, No configuration required.

3. Support AES-128 Encryption with QoS.

4. Line-Neutral/Line-Ground 2×2 MIMO with Beamforming ensures larger range, higher transmission capacity and more stable connection.

5. Wide power range, powered by AC 100-240V, 50/60Hz.

6. Ready to Use with available standard gigabit ethernet port, plug on and works.

7. Power-Saving Mode automatically reduces power consumption.

Specification

  Interface1×10/100/1000mbps Ethernet
IndicatorPower, Ethernet, Data
ButtonReset/Security Button
PowerlineHomePlug AV2, HomePlug AV, IEEE1901, IEEE802.3, IEEE802.3u, IEEE802.3ab
ProtocolsCSMA/CA (Powerline)
EncryptionAES 128-bit
Powered by100v-240v AC
Power SaveCompliance with EuP
SizeL: 113x W: 53x D:33 mm
Weight150g
Frequency2-68MHz
ModulationOFDM (1024/256/64/16-QAM,QPSK,BPSK and ROBO) Modulation Technology)
PHY SpeedEthernet 10/100/1000 (mbps); Powerline 200/500/600/1300 (mbps)
DistancePowerline: 400meters
System



Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC OS,  or Linux
EnvironmentOperating Temperature: 0~40 ℃(32 ℉~104℉)

Storage Temperature:   -20~70 ℃ (-4 ℉~158℉)

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing
