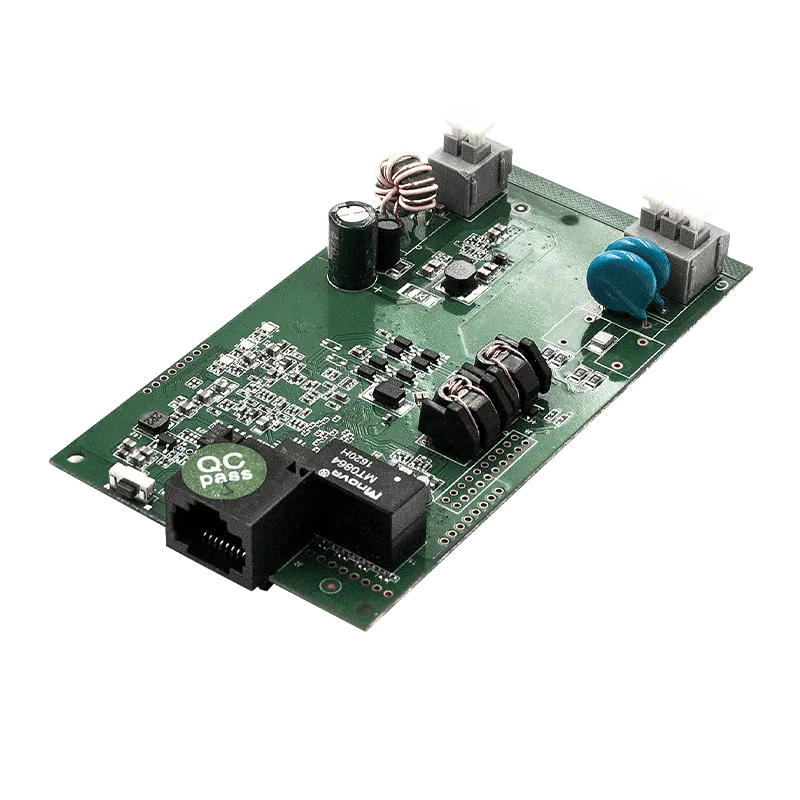

7MP1200 av2 1300 mimo 3wires gigabit powerline communication module

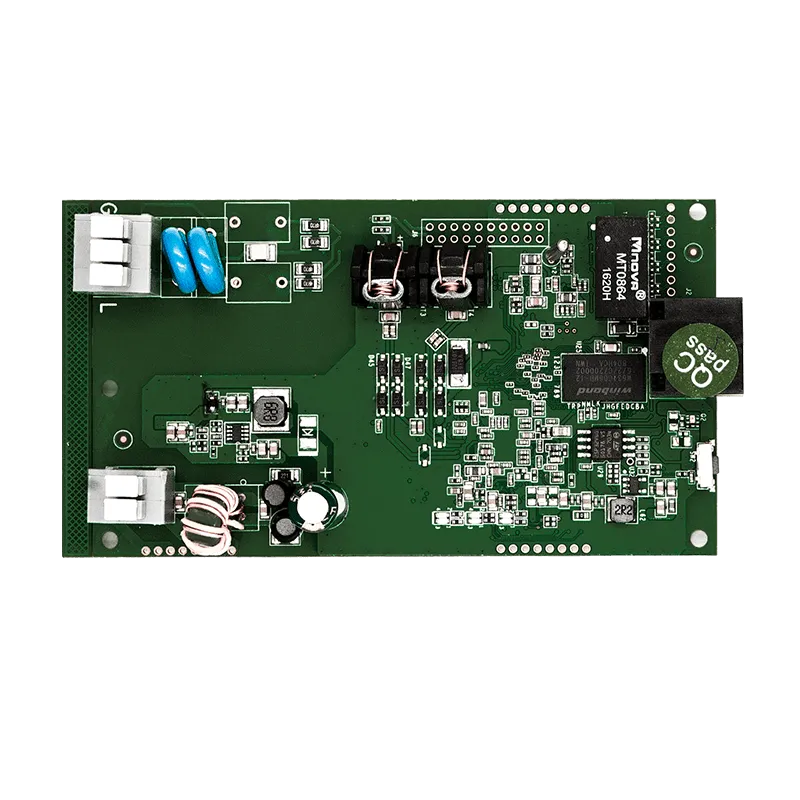

7MP1200 1300mbps AV2 gigabit powerline module

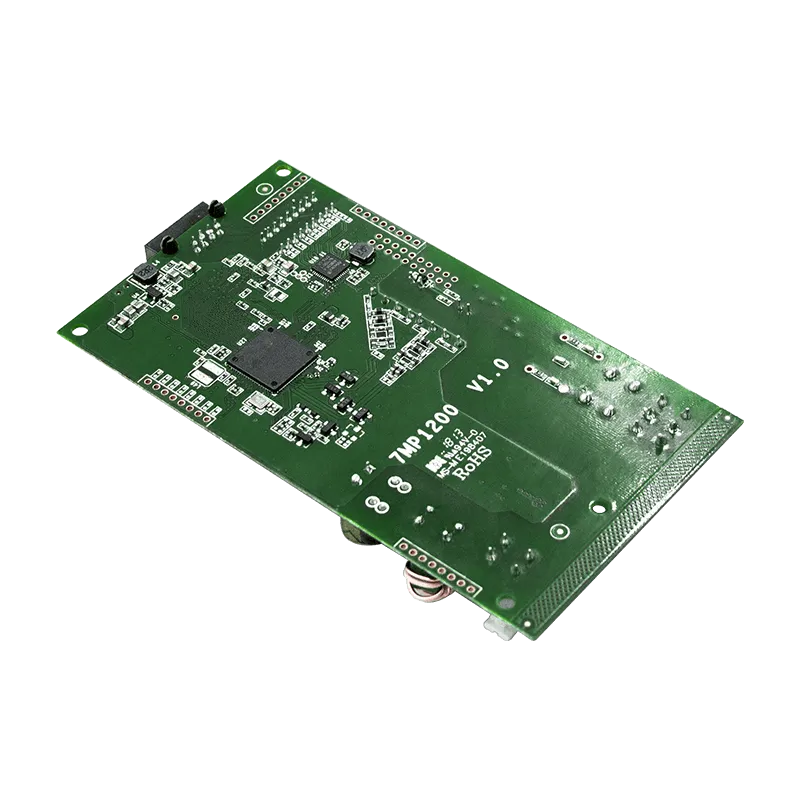

7MP1200 gigabit 1300mbps homeplug av module

AV2 1300Mbps Gigabit Power Line Communication Module For Smart Lighting

7MP1200 AV2 1300Mbps Gigabit MIMO Powerline Module Powered by DC12V, Ethernet Port In Front

Share:
Facebook Twitter Pinterest Linkedin

1300Mbps Powerline Communication Module Overview

The 7MP1200 gigabit power line module connects your network-compatible devices at speeds up to 1,300Mbps with Qualcomm QCA7550 chipset for advanced data transmission and lightning-fast internet access.

The 7MP1200 powerline communication module provides users with DC12V power interface, PLC communication interface, general GPIO interface, working status indicator interface and network interface, very ideal for a number of scenarios, can be integrated in HD,SD Video, IPTV, VOIP,  CCTV cameras, Printer, Gaming , Network sharing and managements systems, etc.

1300Mbps Powerline Module Applications

  • High Definition (HD) and Standard Definition (SD) video distribution
  • Internet Protocol Television (IPTV) distribution
  • Home networking backbone for Hy-Fi, Wi-Fi, and wireless USB
  • High-speed broadband sharing
  • Audio and video streaming and internet downloading
  • Voice over Internet Protocol (VoIP)
  • PC files and applications sharing
  • Printer and peripheral sharing
  • Network and interactive online gaming
  • Security Hy-Fi cameras

Features

1. HomePlug AV2, IEEE 1901, IEEE 1905.1 compliant. High-speed data transfer rates of up to 1300Mbps, supports all your online needs.

2. Easy Plug and Play operation, No configuration required.

3. AES-128 Encrpted with QoS.

4. Line-Neutral/Line-Ground 2×2 MIMO with Beamforming ensures larger range, higher transmission capacity and more stable connection.

5. Powered by DC12V , 50/60Hz.

6. Ready to Use with available standard gigabit ethernet port, plug on and works.

7. Power-Saving Mode automatically reduces power consumption.

Specification

Hardware Parameter
Model 7MP1200
Standards HomePlug AV，HomePlug AV2，IEEE1901，IEEE1905.1，IEEE 802.3i，IEEE 802.3u，IEEE 802.3ab
TCP/IP，IGMP，CSMA/CA，QoS
Modulation OFDM (1024/256/64/16 QAM,QPSK,BPSK,ROBO)
Frequency 2-68MHz
TransferSpeed（PHY） 1300Mbps
Interface DC Power port，LAN port，GPIO port，PLC Communication Port
LED Indicator Power, Data, LAN
OS Windows 98SE/ME/2000/2003/XP/Vista，Windows7，Linux，Mac OS
Transfer Distance 300meter (Same power meter)
Coverage Range 5000 Square Feet
Security 128-bit AES encrypted
Working Voltage DC-12V-0.3A
Power Consumption ≤3.5W
Size 59x102x15mm（LxWxH）
Weight 60g
Environment
Working Temperature 0℃~70℃
Storage Temperature -20℃~70℃
Working Humidity 10%~90%RH No condensation
Storage Humidity 5%~90%RH No condensation
