7M120 AV200 PLC Ethernet Module

AV200 Embedded PLC Ethernet Module For Elevator Monitoring And Fire Alarms

Model: 7M120 Embedded Design  Size: 38*38*15mm Work Power: DC3.3V



Share:
Facebook Twitter Pinterest Linkedin

AV200 PLC Ethernet Module Overview

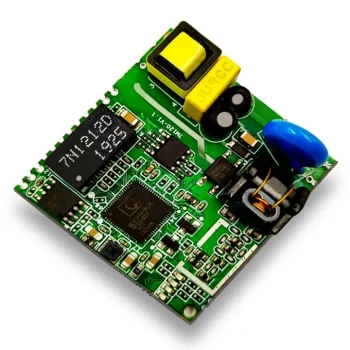

7M120 is a power line communication module, designed for embedded design application. It is compact, supports both IEEE1901 and Homeplug AV standards, and is ideal for a number of scenarios, can be integrated in IoT nodes, CCTV cameras, Smart Metering Systems, Energy Managements systems, etc.

7M120 AV200 powerline communication module adopts Qualcomm QCA6410 chip solution, carries data over AC/DC Lines. it has the characteristics of high integration and small size. It provides up to 200Mbps (physical layer) powerline transmission rate, has very stable and reliable performance.

AV200 PLC Ethernet Module Application

  • Smart Elevator
  • Security Monitoring
  • Access Controller
  • Underwater Robot…
  • Smart Meters
  • Energy Management System
  • Programmable Controlled Thermostates
  • Remote Meters Devices
  • Surveillance
  • Industry
  • Solar Panel

Topology Diagram:

7M120 Topology diagram
7M120 Topology diagram

Features

  • Compliant with homeplug AV and IEEE1901 standard. The Maximum data rate is 200Mbps.
  • Data transmission via two wired line, telephone line and power line.
  • It supports TCP/IP protocole, can be used to communicate to any Ethernet based devices like PC,IP camera,IP phones.
  • No need for configuration by end users, it can work when you plug into the lines.
  • Ideal modules for small-footprint embedded devices.
  • The working frequency ranged from 2-28MHz. No influence on current CATV signals at home.

Specification

Hardware Specification
Model Number 7M120
Standard HomePlug AV，IEEE1901, IEEE 802.3，IEEE 802.3u
Protocol TCP/IP，IGMP，CSMA/CA，QoS
Modulation OFDM (1024/256/64/16-QAM,QPSK,BPSK and ROBO Modulation)
Frequency Band 2-28MHz
Speed（PHY） 200Mbps
Interface AC Interface, Ethernet Interface, GPIO Interface, PLC filter Interface
LED Indicator Power，Data，LAN
OS Windows 98SE/ME/2000/2003/XP/Vista, Windows7，Linux，Mac OS
Transmission Distance 300meters（The same Power Meter）
Coverage 5000 Square Inches
Security 128-bit AES Encryption
Working Voltage DC-3.3V-1A
Consumption Normal≤1.5W
Size 38x38x15mm（LxWxH）
Weight 20g
Environment
Working Temperature 0℃~70℃
Storage Temperature -20℃~70℃
Working Humidity 10%~90%RH Non-Condensing
Storage Humidity 5%~90%RH Non-Condensing
