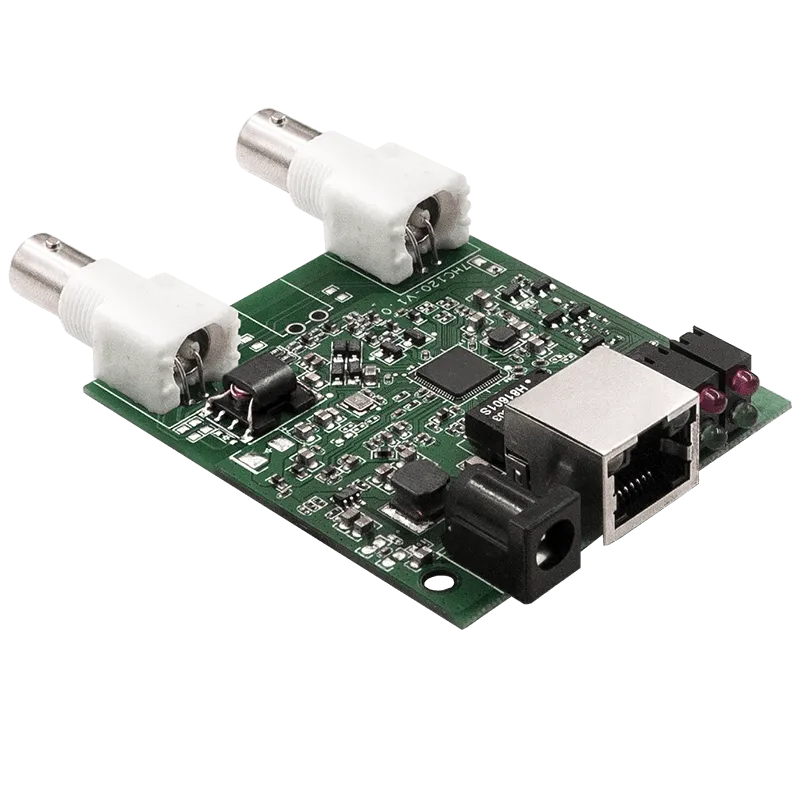

AV200 EoC Module-Ethernet Over Coax Communication For IP Camera

Model: 7HC10 EoC Module Powered by DC12V



Share:

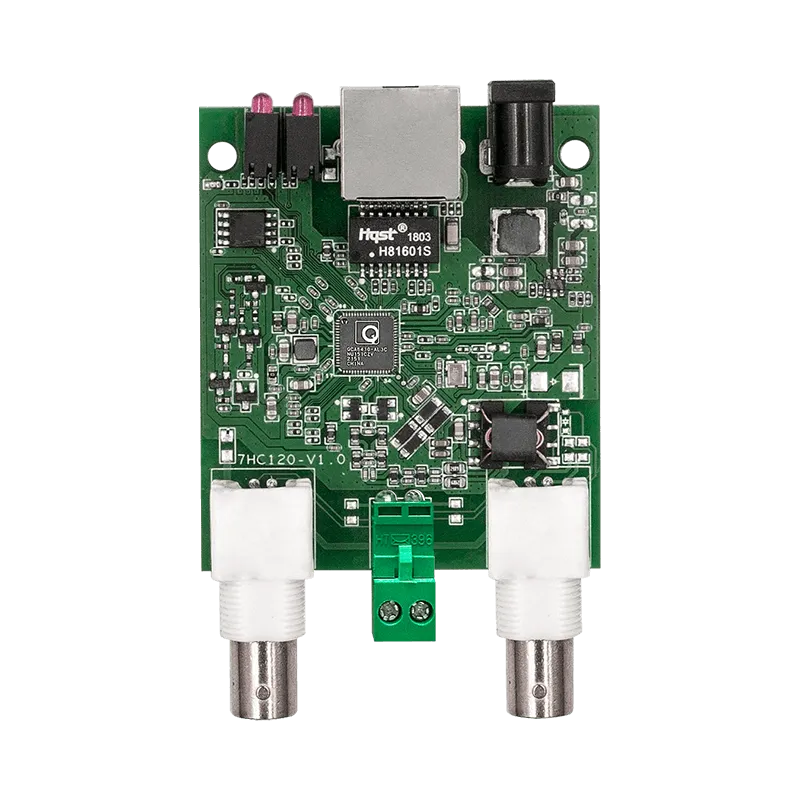

AV200 EoC Module Overview

The main chip of 7HC10 AV200 Ethernet Over Coax Communication Module adopts Qualcomm QCA6410 chip. It has the characteristics of high integration and small size. It can provide up to 200Mbps power line transmission rate, stable work and reliable performance.

The eoc module provides users with DC power interface, PLC BNC/DC communication interface, general GPIO interface, working status indicator interface and network interface.



AV200 EoC Module Typology Diagram



7HC120 Topology diagram



Features

  • Support up to 8 nodes;
  • Support IEEE802.3, IEEE802.3u, standards;
  • Support HomePlug AV; Data transmission through 75Ω coaxial cable, providing up to 200Mbps transmission rate;
  • 10/100Mbp adaptive Ethernet interface;
  • Support 2KM transmission distance over coaxial cable;
  • Support 128-bit AES encryption to ensure the security of network data transmission;
  • Support any operating system, including Mac, Linux;
  • Support fault self-recovery
  • Flexible PLC interface:

(1) Support single BNC head 1 to 1 PLC access;

(2) Support dual BNC head 1 to 2 PLC access;

(3) Support single DC head 1 to multiple PLC access

Specification

InterfaceBNC interface*1
 RJ45 interface*1
IndicatorPwr, Pwm,Plc, Link
PowerlineHomePlug AV,IEEE 802.3,IEEE 802.3u ,IEEE802.3u, IEEE802.3ab802.1p Auto MDI/X802.1p Auto MDI/X IEEE802.3ab
ProtocolsCSMA/CA (Powerline)
EncryptionAES 128-bit
Input PowerDC 12V 1A
Power Consumption<1.5W
Modulation TechnologyOFDM (1024/256/64/16-QAM,QPSK,BPSK and ROBO)
Power SaveCompliance with EuP
SizeL: 70x W: 60x D:25 mm
Weight120g
Frequency2-28MHz
PHY SpeedEthernet 10/100(mbps); Powerline 200 (mbps)
DistanceCoaxial Cable: 2km
Package Contents7HC10 Module
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC OS,  or Linux
EnvironmentOperating Temperature: 0~70 ℃(32 ℉~104℉)

Storage Temperature:   -20~70 ℃ (-4 ℉~158℉)

Operating Humidity: 10%~90% non condensing;

Storage Humidity: 5%~90% non-condensing
